Machine sales
For over 15 years now we have been supplying new machines to customers throughout the UK as well as used units in this sector and throughout Europe. Our strong sales growth has evolved off the back of our unrivalled experience and ability to back up what we sell with thorough knowledge, parts inventory, and custom modifications.
TGS are proud to offer Haybuster, H1000, H1030, H1135 and H1030 / H1135 Engine driven units. Please don’t hesitate to call and discuss what we can offer you. We would love to invite you to our new dedicated workshop facility to showcase these products and what TGS do to further enhance Tub Grinder performance.
For an updated stock list please get in touch, things are always changing fast. If there is something specific you’re after or you need access to a hammer mill to grind something unconventional, please call and ask what we can offer. We have previously converted several machines to specifically deal with products that may not be the easiest to handle.
Current Sales

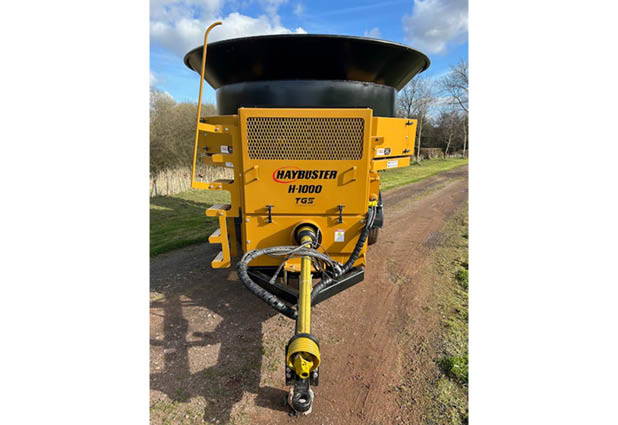

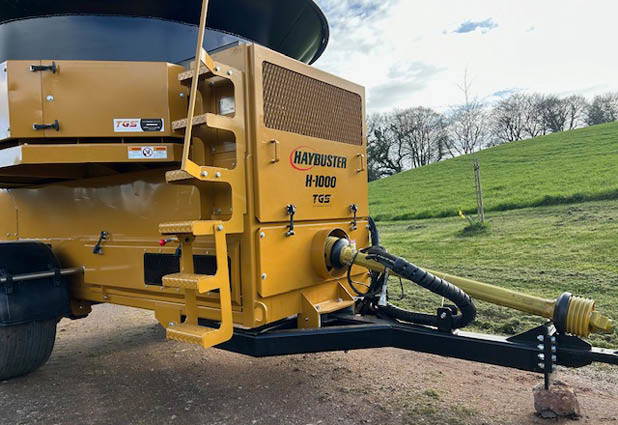

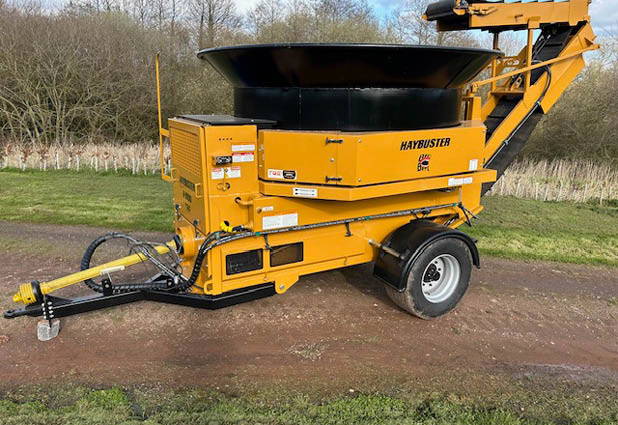

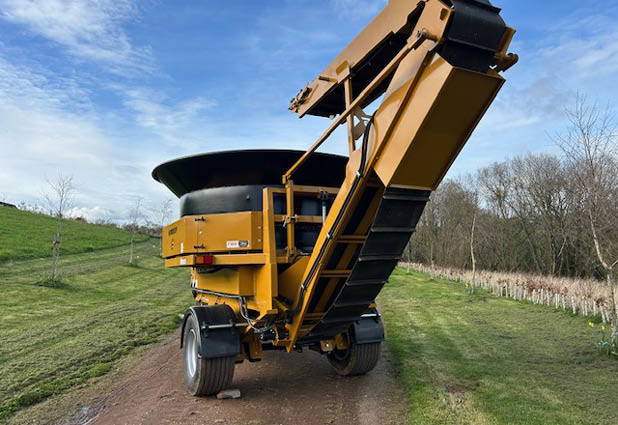

Haybuster H1000
£POA
Full nut and bolt TGS blueprint re-con model. This unit is finished to a very high standard and comes with a 12month warranty.Full nut and bolt TGS blueprint re-con model. This unit is finished to a very high standard and comes with a 12month warranty.
* Rubber cushioned axle and drawbar
* Longer HD walterschied PTO
* New bearings throughout
* New hammers and all wearing parts
* 435/50 19.5 wheels
* Hydraulic braked axle
* Hydraulic conveyor drive
* Comes with six new screens

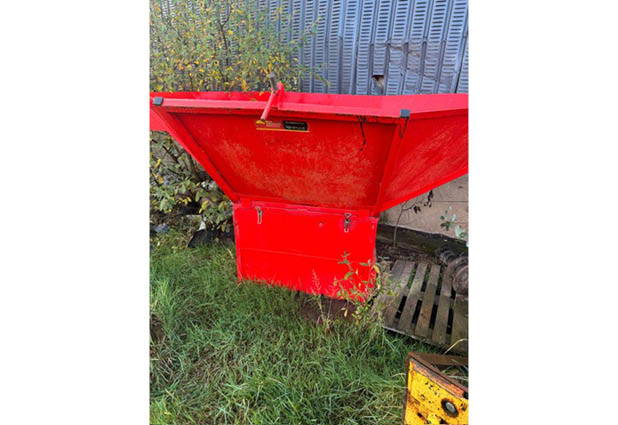

Used Grain Hopper
£POA
One of our early original grain hoppers made to fit a H1000. This unit has done very little work and is in perfect working condition. Grain flow is controlled by an adjustable flap. Full nut and bolt TGS blueprint re-con model. This unit is finished to a very high standard and comes with a 12month warranty.

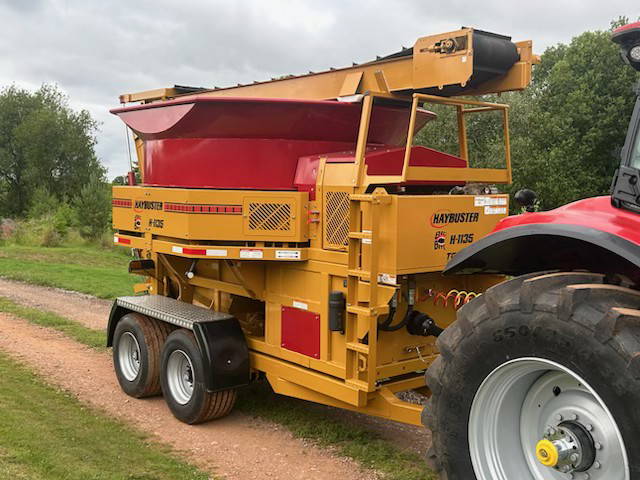

Haybuster H1135
£POA
Coming in soon an ex hire unit with 100-150 hours on the clock year 2023. Currently in its standard form but can be offered on our high speed chassis. A substantial saving against new.
Haybuster H1030
£POA
Coming in very soon an immaculate example of this model year 2019, 900 hours on the clock! Can be supplied in its standard single axle form or on a double axle high speed chassis as pictured in the example below.Full nut and bolt TGS blueprint re-con model. This unit is finished to a very high standard and comes with a 12month warranty
GRAIN HOPPERS

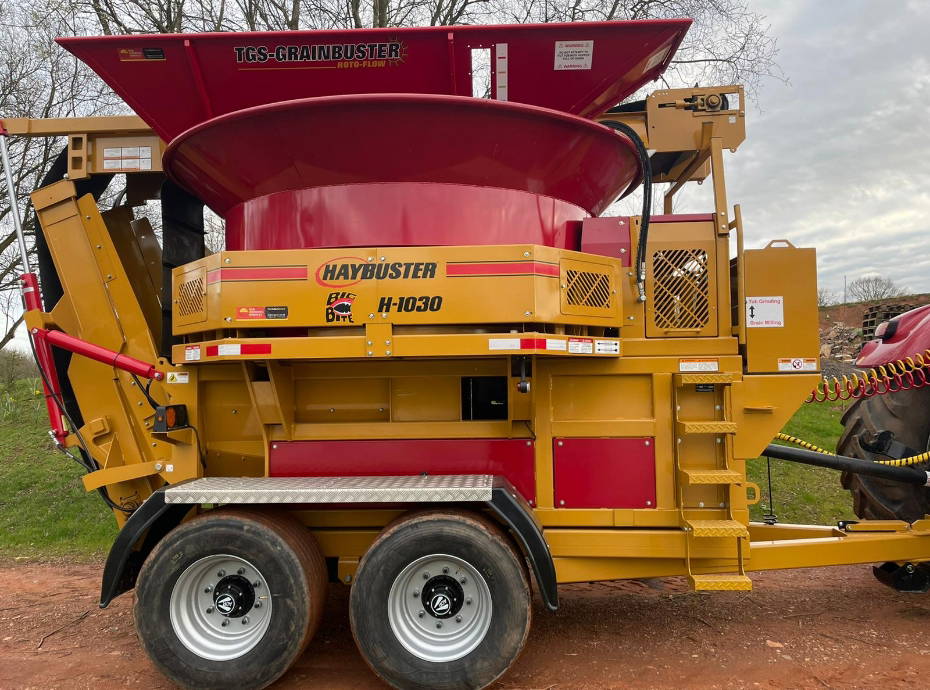

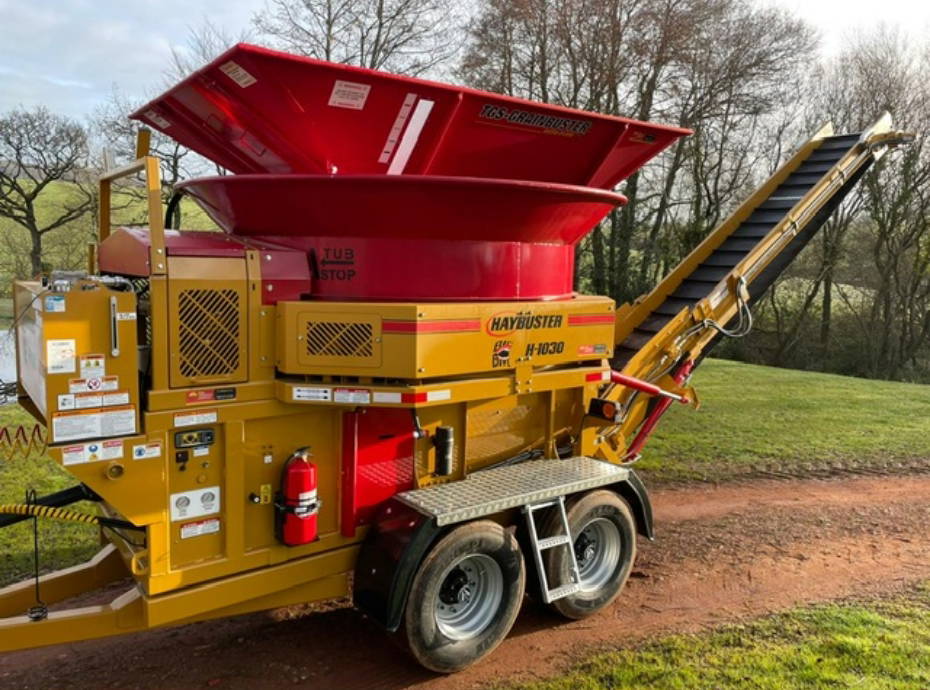

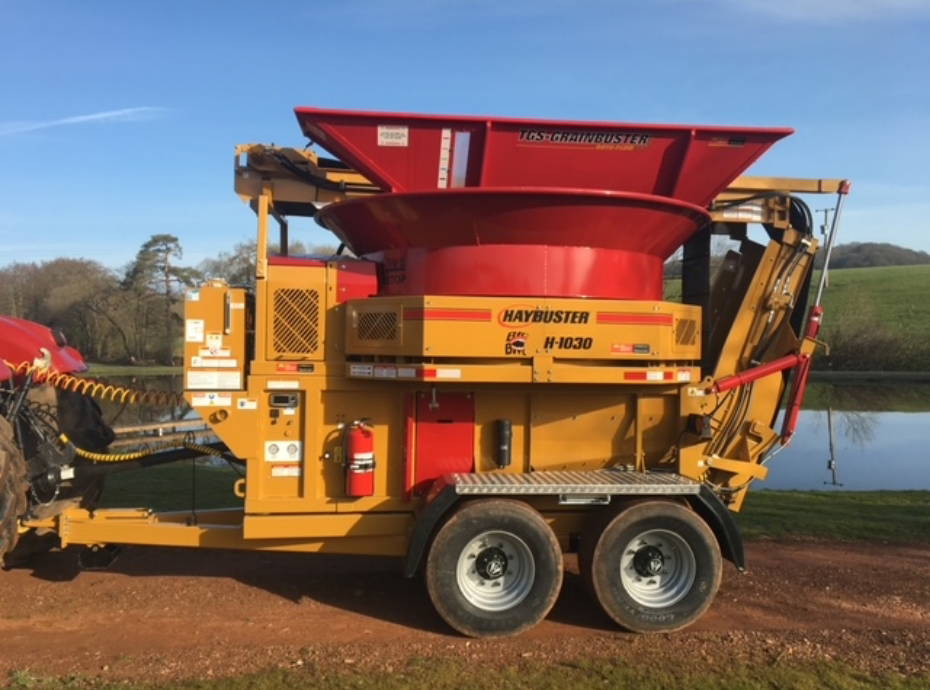

Grainbuster roto-flow grain hopper
We fabricate, in house, our very own designed grain hopper that consists of a square bin that bolts over the mill grate incorporating the flow control mechanism. The top piece of the hopper which is flared is designed to be filled using a telehandler bucket.

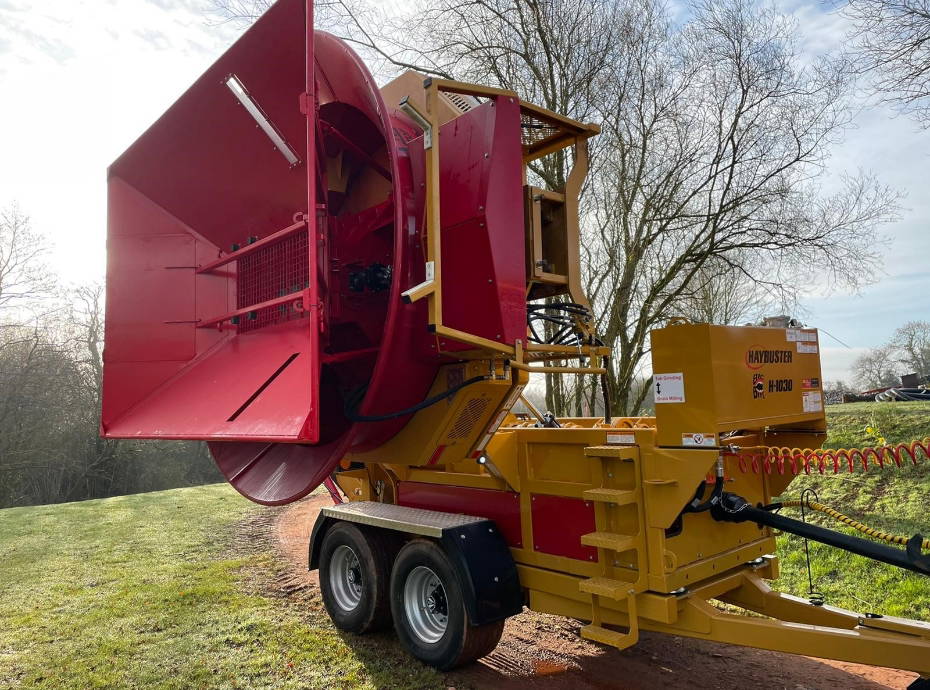

The hopper has a 50mm mesh floor eliminating foreign material to enter the mill. The front and back flares of the hopper have a hydraulically folding section which allows you to fully fold the conveyor for transport purposes.
The bottom part of the hopper is fitted with a hydraulically driven rotary valve. This is linked to the hydraulic system of the tub grinder allowing you to adjust the flow speed and stop/start functions from the control panel.
Read More
The grain rotor can be run in the auto position like you would in straw which has the advantage of load sensing. Installation of the grain hopper (lifted in as one unit with a telehandler) is aided by three locator holes in the tub floor that line up with three locator cones bolted to the underside of the grain hopper. Once sat in place six M16 studs can be tightened up from outside the tub securing the whole unit to the tub floor.
The standard mill grate and geyser plate remain as they do as the grain hopper fits snuggly over this. A diverter valve is fitted to the machine which directs the oil flow from the tub drive motor to the rotor in the grain hopper. All these components including the pipes, fittings, screens and an access ladder are supplied in the kit.
We ship these units worldwide so please get in touch for a quotation.
Front BOXES
For contractors and farmers running multiple sites a custom built front mounted box is a must for carrying everything you need and ensuring all your bits are in one place. We base these mainly around the need for transporting screens but additionally there is lots of capacity for spares, an additional fire extinguisher, a leaf blower and whatever else is required.
‘A’ frame or conventionally mounted the choice is yours. The paint finish is powder coated in whatever colour you choose but we prefer Haybuster yellow! The box can be configured exactly how you wish and we can also add your name / logo profiled on the front.
